Tips

What Are As-Built Drawings and Why Are They Essential in Construction?

Learn what as-built drawings are, how they’re created, who’s responsible, and why they’re critical for construction accuracy, compliance, and building maintenance.
Recent Update: August 01, 2025

What Are As-Built Drawings
What Are As-Built Drawings

In the world of construction, accuracy isn’t a luxury—it’s a necessity. A single mistake between the design intent and the final build can lead to delays, cost overruns, or even safety risks. That’s why as-built drawings are so critical. These documents provide a detailed record of what was constructed, offering insights far beyond the original plans.


What Are As-Built Drawings?

As-built drawings—sometimes referred to as "as built drawing" in industry shorthand—are updated versions of design drawings that reflect all modifications made during the construction process. They capture changes in dimensions, material specifications, installation details, and on-site adjustments that differ from the original design.

So, what are as-built drawings exactly? They're the true-to-life representation of the completed structure. While design drawings show intent, as-built drawings show reality.

As-Built Drawings
As-Built Drawings

Why Are As-Built Drawings Important?

As-built drawings are more than just a project formality—they're essential tools for lifecycle. As-built drawings play a vital role in every stage of a building’s lifecycle. From project closeout to future renovations, they ensure transparency, efficiency, and long-term value.

Project Handover and Record-Keeping

At the end of construction, an accurate as-built drawing becomes a crucial part of the handover package. It provides a clear record of what was built, including deviations from the original design. Owners and facility managers rely on it to understand the location of key systems and structures.

Maintenance, Upgrades, and Renovations

For future work, as-built drawings serve as a technical roadmap. They help maintenance teams locate HVAC, plumbing, and electrical systems hidden behind walls or ceilings. This prevents accidental damage and unnecessary exploratory work.

Legal and Regulatory Compliance

In many regions, submitting a final as-built drawing is required to obtain occupancy permits and meet code compliance. They also support insurance documentation and public authority approvals, helping avoid legal delays or liabilities.

Reducing Rework and Construction Risk

Accurate as-built records reduce costly errors, rework, and miscommunication between teams. By documenting real-world conditions, they serve as a safeguard against incorrect installations and safety hazards in future phases.

Engineer handover process
Engineer handover process

What Information Is Included in As-Built Drawings?

A well-prepared as-built drawing captures far more than just final dimensions—it tells the full story of how a structure was built. The purpose of as-built drawings is to document every field change, adjustment, and site-specific variation that occurred during construction. This makes them an invaluable reference for future work, compliance checks, and facility management.

Here’s what’s typically included in an as-built drawing package:

Finalized Floor Plans and Layouts

The finished layout of walls, rooms, doors, and circulation paths often reflects last-minute changes made during construction. These plans replace the original design drawings with the accurate footprint of the completed building.

Structural Framing Adjustments

Any shifts in the location or dimensions of beams, columns, slabs, and supports due to field conditions or redesign decisions are documented in the as-built drawings.

Engineers discuss as-builts drawing
Engineers discuss as-builts drawing

Actual MEP System Routing

One of the most critical aspects of an as-built drawing is the accurate placement of mechanical, electrical, and plumbing (MEP) systems. This includes HVAC ductwork, electrical conduits, sprinkler lines, plumbing runs, and control panels—often deviating from the original plans due to site constraints.

Site Plan Modifications

Changes in grading, drainage, landscaping, parking, or underground utilities are marked to reflect the real-world site conditions. These site changes are crucial for future expansion, repairs, or infrastructure planning.

Field Notes and Change Orders

As-built drawings often include notations, revision clouds, or tags indicating why and when changes occurred. This can include approved construction change orders, value engineering decisions, or unforeseen field adjustments.

Digital Formats and Tools

Modern as-built drawings are often generated using CAD, Revit, or other BIM-compatible tools—frequently based on data from 3D room capture and laser scanning technologies.

Engineers discuss as-builts drawing
Engineers discuss as-builts drawing

By combining precise measurements with real-time field data, as-built drawings become an indispensable asset, providing clarity, reducing uncertainty, and supporting the entire lifecycle of a building.


How to do as built drawings?

If you're wondering how to do as-built drawings, the process depends on the tools, project complexity, and level of accuracy required. Whether you're working on a small residential project or a large commercial facility, the goal remains the same: to document the built reality as accurately as possible.

Here are two primary approaches to creating an as-built drawing:

1) Manual Redlining

This is the traditional method and is still widely used on smaller or straightforward projects.

  • Field teams walk through the site with printed design drawings
  • They manually mark up all changes (known as redlines) based on actual installation and construction
  • These redlined sheets are then used to update CAD files later in the office

Hand-drawn drawings
Hand-drawn drawings

2) 3D Scanning and Digital Capture

For higher precision and speed, many teams now rely on digital technologies to generate as-built drawings.

  • Use 3D laser scanners, LiDAR cameras, drones, or mobile mapping devices to capture real-world conditions

Galois 3d LiDAR camera
Galois 3d LiDAR camera

  • Generate point cloud data that represents the physical environment in high detail
  • Convert the data into 2D CAD drawings or 3D BIM models using tools like AutoCAD, Revit, or ArchiCAD

3D Scanning and Digital Capture
3D Scanning and Digital Capture

Whether you choose manual or digital methods—or a hybrid of both—what matters most is that your as-built drawing accurately reflects the final, constructed condition of the project. Precision at this stage ensures smoother handover, fewer future errors, and long-term operational efficiency.


Who Uses As-Built Drawings?

Contractors and Subcontractors

They use as-built drawings to confirm that the completed work aligns with project specifications and scope. These records also help resolve disputes or clarify field changes during handover.

Architects and Engineers

For design professionals, as-built drawings provide a reliable reference for future renovations, retrofits, or additions. Accurate existing conditions save time during the planning and design phases.

Facility Managers

Maintenance teams rely on as-built drawings to locate utilities, access systems, and plan upgrades efficiently. Having the real layout helps avoid damage and reduce downtime.

Developers and Property Owners

They need as-built drawings for compliance, insurance, and asset documentation. These records also support leasing, resale, or building lifecycle planning.


3D Scanning Integrated Equipment
3D Scanning Integrated Equipment

Conclusion

As-built drawings are no longer just static documents. With tools like point clouds, 3D models, and virtual tours, construction teams can deliver interactive, data-rich records that enhance communication, reduce site visits, and streamline future planning.

This shift doesn't just improve precision—it transforms how contractors, designers, and facility managers collaborate across the entire building lifecycle.

If your project demands reliable, up-to-date records that support compliance, future renovations, or smart asset management, investing in accurate as-built drawing services is essential. Whether you choose manual redlining or 3D capture, the key is working with partners who understand both the field and the technology.

Looking ahead, as-built drawings won’t just reflect what’s been built—they’ll become the foundation for what’s possible next.


FAQs About As-Built Drawings

Q1.Can as-built drawings be created digitally?

Yes. Today, many teams use 3D laser scanning, LiDAR, or drone photogrammetry to generate highly accurate as-built drawings. These can be converted into CAD or BIM models, improving precision and integration with digital workflows.

Q2.What format are as-built drawings delivered in?

They are typically provided in PDF, DWG (CAD), or RVT (Revit) formats. For large or complex projects, full BIM-based as-builts may be delivered for long-term facility management.

Q3.What is the difference between as-built drawings and construction drawings?

Construction drawings show what was planned; as-built drawings show what was built.

Q4.What is the difference between as-built drawings and as-built documentation?

As-built drawings are part of the broader as-built documentation, which also includes notes, photos, and project records beyond just drawings.




  • Product
    GaloisRealsee G1360 CameraMobile phone
  • Solution
    Real Estate PhotographerReal Estate Agency
  • Resources
    About UsPartners
  • Quick links
    Realsee AppConsoleHelp CenterLegal agreements
  • Contact Us
    LinkedIn
    FaceBook
    Youtube
    X
    Reddit
    WhatsApp
Realsee
©Copyright 2024 Beike Realsee Technology (HK) Limited All rights reserved|Various trademarks held by their respective owners.

More from Tips

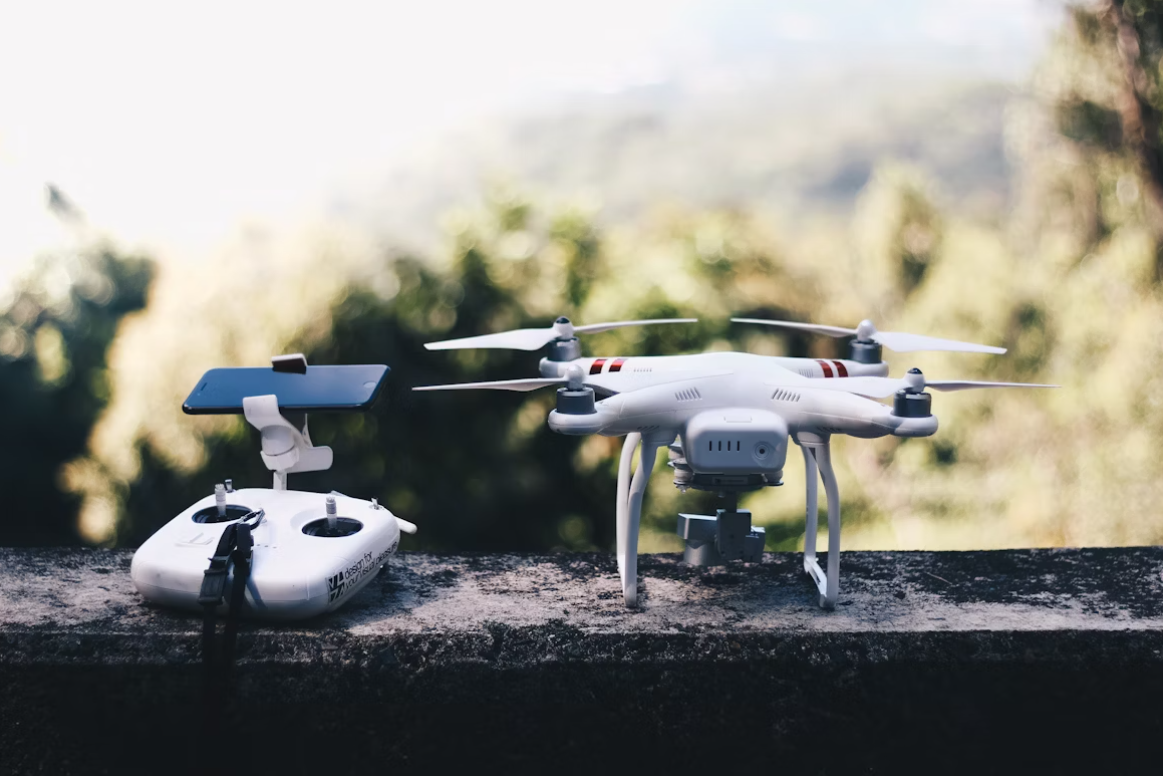

Benefits of Using Drones for Real Estate: Marketing & Inspections
